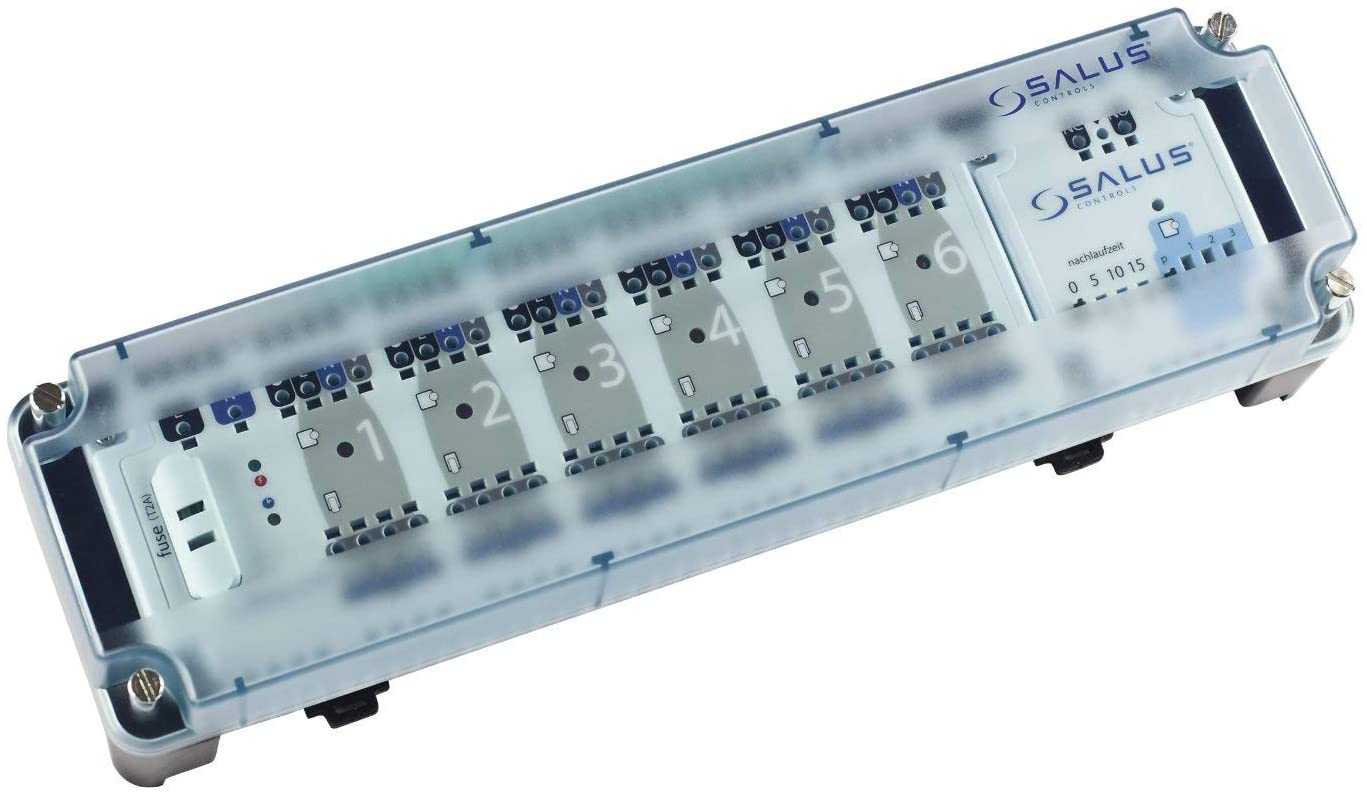

Salus KL06 Wiring Centre 230V for Underfloor Heating with Pump Module PL06, Terminal Strip for 6 Room Thermostats and 24 Actuators with Pump Control

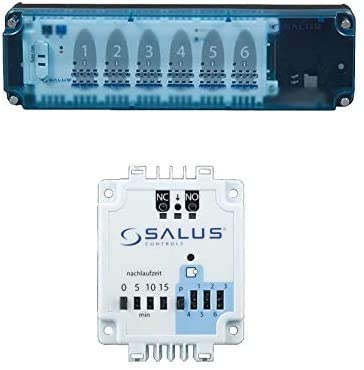

The SALUS control terminal strip KL06 is the ideal connection between room thermostats and actuators. SALUS room thermostats and SALUS actuators can be connected in the simplest and most secure manner and without tools. Integrated LEDs inform you about the operating status at any time. The built-in fuse protects the SALUS control terminal block against overvoltage and is easy to pull out and replace if necessary. The labeling field enables you to assign the circles easily and clearly. Depending on the incoming signal from the room controller, the control terminal block can be used for heating or cooling operation. The SALUS control terminal strip KL06 has installed the pump logic module PL06 at the factory. The potential-free relay switches the pump individually according to your specifications. Tool-free cable connection thanks to plug-in technology. Up to 6 thermostats and 24 actuators can be connected. Clear and unambiguous labeling of the clamps strain relief enclosed. Control of the functions by LED´s labeling field for easy identification. Suitable for DIN rail or for mounting on the wall. Integrated overload protection version 230V.
- Works with NO and NC actuators. 6 zones with 4 actuators per zone.
- Push-in cable connections with strain relief. Volt free pump and boiler switching.
- Separate in-port for night setback signal.
- LED status indication.
- 5 year warranty.
